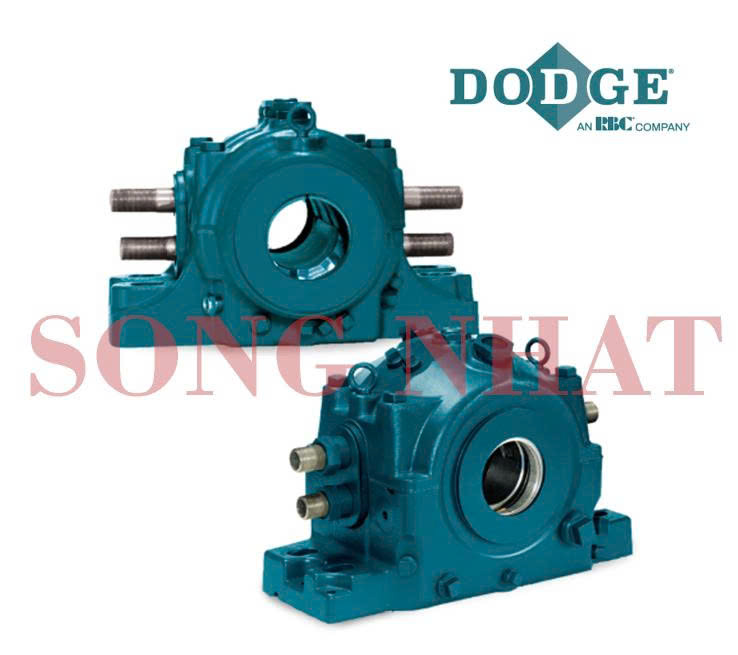

Gối đỡ trượt thủy động (Mounted Hydrodynamic Bearings)

Gối đỡ trượt thủy động Dodge Sleevoil® mang lại hiệu suất vượt trội trong các ứng dụng nhiệt độ cao. Thiết kế lớp lót giúp chịu tải hướng tâm và tải dọc trục rất tốt, đảm bảo độ bền và độ ổn định cao trong quá trình vận hành.

Xem catalog

Tìm hiểu thêm về:

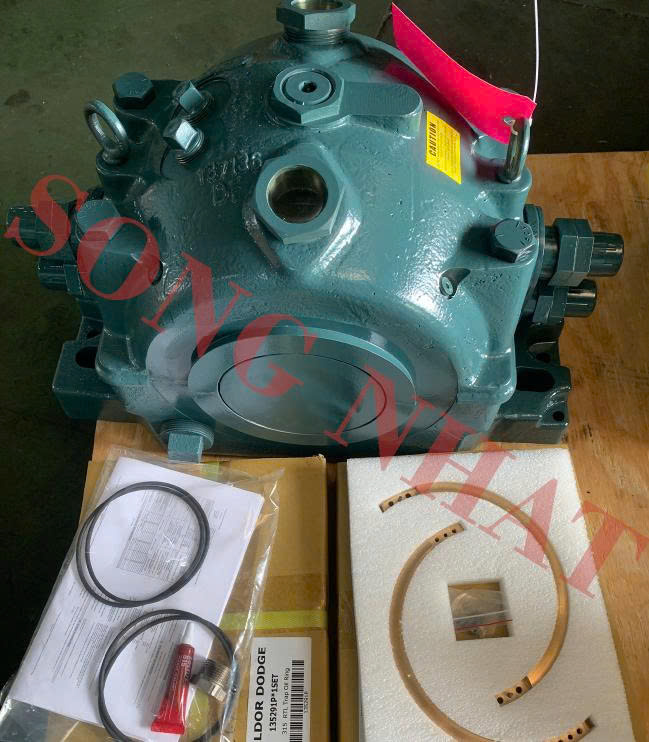

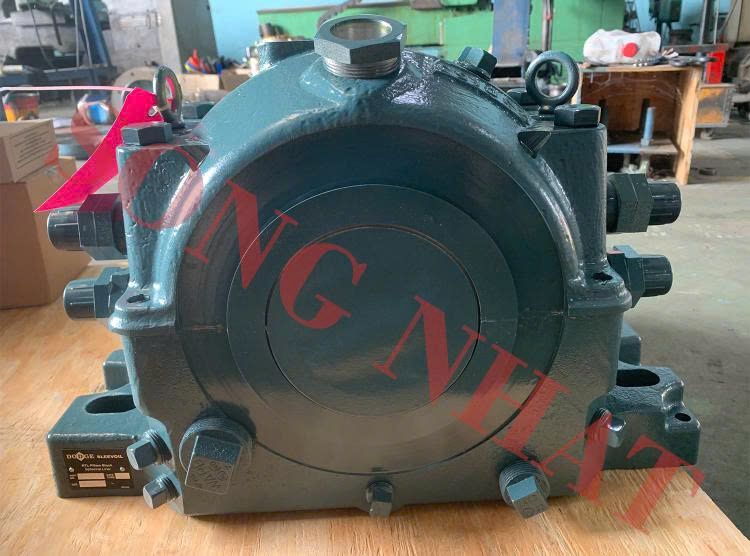

Sleevoil RTL

Được thiết kế để vận hành ổn định 24/7, Sleevoil® RTL là giải pháp hàng đầu giúp kéo dài tuổi thọ sản phẩm nhờ thiết kế cầu hoàn toàn (fully spherical), tăng cường độ cứng vững và độ ổn định.

Sản phẩm đặc biệt phù hợp cho các ứng dụng như quạt, bơm và động cơ, đồng thời mang lại hiệu suất vượt trội trong môi trường nhiệt độ cao và vận hành tốc độ cao.

Sleevoil R

Là dòng gối đỡ thủy động lắp sẵn nguyên bản của Dodge, Sleevoil® R mang lại hiệu suất đã được kiểm chứng qua thời gian.

Sản phẩm cung cấp độ bền lâu dài cho nhiều ứng dụng công nghiệp khác nhau, được thiết kế chính xác nhằm đảm bảo vận hành êm ái và nâng cao tuổi thọ thiết bị.

#HydrodynamicBearings #Sleevoil #SleevoilR #SleevoilRTL #DodgeSleevoil#DodgeBearing #MountedBearings #TaperedRollerBearings #BallBearings #DodgeIndustrial #MechanicalPowerTransmission #IndustrialBearings #BearingSolutions #TypeEBearing #EXLBearing #TAFBearing #DoubleInterlock #SpecialDutyBearing #HingedCapBearing #TypeKBearing #TypeCBearing #DodgeBallBearing #PillowBlockHousing #FlangeBearing #MountedBallBearings #SphericalRollerBearings #MountedSphericalBearings #DodgeSphericalBearing

Bearing Engineering Catalog: BẤM ĐỂ XEM

Sleevoil RTL pillow block – inch

Shaft size (inches)

Expansion pillow blocks

Thrust plate kits

Split thrust collar

AuxiIiary seaI kits

Housing end cap kits

Heater/

thermostat

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

2-15/16

132447

190

137101

2,5

132151

2,6

132811

4,9

132542

5,3

434721

1,0

3-7/16

132474

190

137101

2,5

132151

2,6

132811

4,9

132542

5,3

434721

1,0

3-15/16

132475

230

137102

4,3

132152

4,2

432181

6,4

432190

6,1

434725

2,5

4-7/16

132476

300

137103

5,4

132153

5,6

432184

7,0

432193

6,8

434725

2,5

4-15/16

132477

425

137104

6,9

132154

8,7

432187

7,5

432196

7,3

434727

3,0

5-7/16

132383

500

137105

10,2

132155

10,8

133932

12,4

132546

11,6

434727

3,0

132384

825

137106

12,7

132156

15,9

133933

14,8

132547

10,6

434727

3,0

132385

978

137107

17,6

132157

22,4

133937

19,0

132548

13,5

43472

132386

1310

137108

23,1

132158

34,5

133938

24,9

132549

15,5

434729

4,0

132387

1650

137109

42,6

132159

45,9

132814

23,1

132564

15,9

434729

4,0

132388

2150

137110

52,7

132160

59,8

132816

24,2

132565

16,4

434729

4,0

132389

3500

137111

74,1

132161

96,4

132819

40,0

132566

25,0

434735

7,5

Thrust pIate kits & SpIit thrust collar: One of each required to make a non-expansion pillow block

Accessories

SIeevoiI end cap kits – inch

Bore size (inches)	Pillow block style	Part number	Weight (lbs)
3-7/16	Plain/water cooled STL and SSL	132542	5,3
3-15/16	PLXC, STL and SSL	432190	6,1
4-7/16	PLXC, STL and SSL	432193	6,8
4-15/16	PLXC, STL and SSL	432196	7,3
5-7/16	PLXC, STL and SSL	132546	11,6
6	PLXC, STL and SSL	132547	10,6
7	PLXC, STL and SSL	132548	13,5
8	PLXC, STL and SSL	132549	15,5
9	STL Plain	132564	15,9
9	XC	132564	15,9
9	SSL Plain	132564	15,9
9	SSL	132564	15,9
9	XC	132564	15,9
10	STL Plain	132565	16,4
10	XC	132565	16,4
10	SSL	132565	16,4
10	Plain	132565	16,4
10	XC	132565	16,4
12	STL Plain	132566	26
14	STD Plain	132567	26,5
2-15/16	RTL spherical	435217	5,3
3-7/16	RTL spherical	435217	5,3
3-15/16	RTL spherical	435218	6,1
3-7/16	RTL	132542	5,3
3-15/16	RTL	432190	6,1
4-7/16	RTL	432193	6,8
4-15/16	RTL	432196	7,3
5-7/16	RTL	132546	11,6
6	RTL	132547	10,6
7	RTL	132548	13,5
8	RTL	132549	15,5
9	RTL	132564	15,9
10	RTL	132565	16,4
12	RTL	132566	26

Accessories
Sleevoil auxiIiary seaI kits – inch

Bore size (inches)	Pillow block style	Part number	Weight (lbs)
3-7/16	Plain/water cooled STL and SSL	132811	4,9
3-15/16	PLXC, STL and SSL	432181	6,4
4-7/16	PLXC, STL and SSL	432184	7,0
4-15/16	PLXC, STL and SSL	432187	7,5
5-7/16	PLXC, STL and SSL	133932	12,4
6	PLXC, STL and SSL	133933	14,8
7	PLXC, STL and SSL	133937	19,0
8	PLXC, STL and SSL	133938	24,9
9	STL Plain	132814	23,1
9	XC	132814	23,1
9	SSL Plain	132814	23,1
9	SSL	132814	23,1
9	XC	132814	23,1
10	STL Plain	132816	22
10	XC	132816	22
10	SSL Plain	132816	22
10	SSL	132816	22
10	XC	132816	22
12	STL Plain	132819	32
14	STD Plain	132822	30
3-7/16	RTL	132811	4,9
3-15/16	RTL	432181	6,4
4-7/16	RTL	432184	7,0
4-15/16	RTL	432187	7,5
5-7/16	RTL	133932	12,4
6	RTL	133933	14,8
7	RTL	133937	19,0
8	RTL	133938	24,9
9	RTL	132814	23,1
10	RTL	132816	—
12	RTL	132819	—

SIeevoiI R piIIow bIock – inch
Plain, water-cooled (PL-WC) – standard and short series

Shaft size (inches)

Expansion

pillow blocks (STD)

Expansion

pillow blocks (SSH)

Split thrust collars

Neoprene end cIosure

Hose kits

RepIacement

PL-WC Iiner assembIies

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part

number

Weight (Ibs)

1-7/16

132983

20,5

—

133245

0,7

133980

133203

3,6

1-11/16

132984

30,7

—

133250

1,2

133981

0,12

133583

1-15/16

132985

31,6

—

133255

1,0

133982

0,12

133584

7,0

2-3/16

132986

47,8

—

133260

1,8

133983

0,12

13358

2-7/16

132987

65,5

—

133265

2,7

133984

0,12

133344

0,5

133586

11,6

2-11/16

132988*

97,0

—

133270

4,1

133985

0,12

132959*

27,0

2-15/16

132989*

92,4

132991*

90,0

133275

3,8

133986

0,18

132950*

22,0

3-7/16

132990*

144,0

132992*

138,0

133280

6,2

133987

0,31

132951*

* Pillow block and liner are pre-drilled for thermocouple (2 places).
STL and SSL are pre-drilled for accessories: thermocouple, circulating oil, vibration detector, heater and thermostat.
SSH: Short series expansion onIy
SpIit thrust coIIars: 2 CoIIars required to make a non-expansion piIIow bIocks

SIeevoiI R piIIow bIock – inch
Plain, externally cooled (PL-XC) – standard and short series

Shaft size (inches)

Expansion pillow blocks (STL)

Expansion pillow blocks (SSL)

Split thrust collars

PL-XC

WC*

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

3-15/16

134200

201

134207

193

133285

7,2

132952

4-7/16

134201

271

134208

255

133292

7,9

132953

4-15/16

134202

362

134209

324

133293

11,3

132954

5-7/16

134203

470

134210

462

133294

12,3

132955

130

132955

130

134204

598

134211

570

133295

15,3

132956

158

132956

134205

882

134212

845

133296

31,3

132957

230

132957

230

134206

1298

134213

1256

133297

48,7

132958

372

132958

372

SSL: Short series expansion onIy
SpIit thrust coIIars: 2 CoIIars required to make a non-expansion STL piIIow bIocks
RepIacement Iiner assembIies: PL-XC, WC
PL-XC: ExternaIIy cooIed
WC* (Discontinued in 2022): If a WC liner is in place, the entire pillow block must be replaced with a PLXC pillow block.

SIeevoiI R piIIow bIock – inch
Plain, externally cooled (PL-XC) – standard and short series

Shaft size (inches)

AuxiIiary

seaI kits ##

Housing end cap kits

Heater l

Thermostat * 120 VoIt

CircuIating

oiI inIet kits >

Neoprene

end cIosures **

Pipe

grommet kits >

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

3-15/16

432181

6,4

432190

6,1

434721

1,0

432153

2,0

133988

0,3

132192

1,0,

4-7/16

432184

7,0

432193

6,8

434721

1,0

430198

2,0

133989

0,4

132192

1,0,

4-15/16

432187

7,5

432196

7,3

434721

1,0

430198

2,0

133990

0,5

132193

2,4

5-7/16

133932

12,4

132546

11,6

434721

2,0

430155

2,0

133991

0,6

132193

2,4

133933

14,8

132547

10,6

434725

2,5

430155

2,0

133992

0,8

132198

3,0,

133937

19,0

132548

13,5

434725

2,5

430155

2,0

133993

1,2

132198

3,0,

133938

24,9

132549

15,5

434727

3,0

430155

2,0

133994

1,3

132198

3,6

## One required per pillow block end.
> One required per pillow block.
* 220 volt heaters available.
** Two required per 3-15/16 through 4-15/16 sizes; three for 5-7/16 and larger.

SIeevoiI R piIIow bIock – inch
Plain – standard and short series

Shaft size (inches)	PIain expansion piIIow bIocks				SpIit thrust coIIars
	STL		SSL		2 coIIars required to make a non-expansion STL piIIow bIocks
	Part number	Weight (Ibs)	Part number	Weight (Ibs)	Part number	Weight (Ibs)
9	132766	1235	132924	1168	133959	54
10	132767	1240	132925	1105	133960	52
12	132768	2000	132926	1785	133961	68
14	431399	3400	430561	3000	431389	75

Shaft size (inches)

AuxiIiary

seaI kits ##

Housing

end cap kits

Heater l

Thermostat * 120 VoIt

CircuIating

oiI inIet kits >

Neoprene

end cIosure##

RepIacement

pIain Iiner assembIies

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part number

Weight (Ibs)

Part

number

Weight (Ibs)

132814

23,1

132564

15,9

434727

3,0

430155

2,0

133996

1,5

133550

327

132816

24,2

132565

16,4

434727

3,0

430155

2,0

133995

1,6

133669

450

132819

40,0

132566

25,0

434729

4,0

430155

2,0

133997

1,9

133392

650

132822

36,0

132567

25,0

434729

4,0

430155

2,0

—

430831

120

# # One required per pillow block end.
> One required per pillow block.
* 220 volt heaters available. see page B26-24.
All housings are pre-machined for accessories; thermocouples, circulating oil vibration detector, heater and thermostat.

SoIidIube LT piIIow bIock – inch
2-bolt

Series	Shaft size	700 Series			1000 Series
		Part number	Description	Weight	Part number	Description	Weight	Used on frame
204	3/4	033667	P2B-LT7-012	1,70	033977	P2B-LT10-012	1,7 lbs	LD-10
204	20 mm	034225	P2B-LT7-20M	0,77	034234	P2B-LT10-20M	0,77 kgs	LD-10
205	7/8	033668	P2B-LT7-014	1,60	033978	P2B-LT10-014	1,6 lbs	LD-10
205	15/16	033669	P2B-LT7-015	1,50	033979	P2B-LT10-015	1,5 lbs	LD-10
205	1	033670	P2B-LT7-100	1,40	033980	P2B-LT10-100	1,4 lbs	LD-10
205	25 mm	034226	P2B-LT7-25M	0,64	034235	P2B-LT10-25M	0,64 kgs	LD-10
206	1-1/8	033672	P2B-LT7-102	2,80	033982	P2B-LT10-102	2,8 lbs	LD-20
206	1-3/16	033673	P2B-LT7-103	2,70	033983	P2B-LT10-103	2,7 lbs	LD-20
206	30 mm	034227	P2B-LT7-30M	1,22	034236	P2B-LT10-30M	1,22 kgs	LD-20
207	1-1/4	033674	P2B-LT7-104	4,20	033984	P2B-LT10-104	4,2 lbs	LD-20
207	1-3/8	033676	P2B-LT7-106	3,90	033986	P2B-LT10-106	3,9 lbs	LD-20
207	1-7/16	033677	P2B-LT7-107	3,80	033987	P2B-LT10-107	3,8 lbs	LD-20
207	1-1/2	033678	P2B-LT7-108	3,70	033988	P2B-LT10-108	3,7 lbs	LD-20
207	35 mm	034228	P2B-LT7-35M	1,77	034237	P2B-LT10-35M	1,77 kgs	LD-20
209	1-11/16	033680	P2B-LT7-111	6,00	033990	P2B-LT10-111	6 lbs	LD-20
209	1-3/4	033681	P2B-LT7-112	5,80	033991	P2B-LT10-112	5,8 lbs	LD-20
209	40 mm	034229	P2B-LT7-40M	2,72	034238	P2B-LT10-40M	2,72 kgs	LD-20
209	45 mm	034230	P2B-LT7-45M	2,63	034239	P2B-LT10-45M	2,63 kgs	LD-20
210	1-15/16	033682	P2B-LT7-115	6,80	033992	P2B-LT10-115	6,8 lbs	LD-30
210	2	033683	P2B-LT7-200	6,60	033993	P2B-LT10-200	6,6 lbs	LD-30
210	50 mm	034231	P2B-LT7-50M	3,08	034240	P2B-LT10-50M	3,08 kgs	LD-30
211	2-3/16	033684	P2B-LT7-203	8,00	033994	P2B-LT10-203	8 lbs	LD-40
212	2-7/16	033686	P2B-LT7-207	10,10	033996	P2B-LT10-207	10,1 lbs	LD-40
212	2-1/2	033687	P2B-LT7-208	9,80	033997	P2B-LT10-208	9,8 lbs	LD-40
212	60 mm	034221	P2B-LT7-60M	4,58	034241	P2B-LT10-60M	4,58 kgs	LD-40
215	2-15/16	033688	P2B-LT7-215	21,20	033998	P2B-LT10-215	21,2 lbs	LD-45
215	3	033077	P2B-LT7-300	20,90	033974	P2B-LT10-300	20,9 lbs	LD-45
215	70 mm	034232	P2B-LT7-70M	9,98	034242	P2B-LT10-70M	9,98 kgs	LD-45
215	75 mm	034233	P2B-LT7-75M	9,62	034243	P2B-LT10-75M	9,62 kgs	LD-45

SoIidIube LTB piIIow bIock – inch
2-bolt

Series	Shaft size	700 Series			1000 Series
		Part number	Description	Weight	Part number	Description	Weight	Used on frame
204	3/4	032940	P2B-LTB7-012	1,6	032970	P2B-LTB10-012	1,6	LD-10
204	20 mm	034244	P2B-LTB7-20M	0,73	034252	P2B-LTB10-20M	0,73	LD-10
205	7/8	032941	P2B-LTB7-014	1,5	032971	P2B-LTB10-014	1,5	LD-10
205	15/16	032942	P2B-LTB7-015	1,4	032972	P2B-LTB10-015	1,4	LD-10
205	1	032943	P2B-LTB7-100	1,3	032973	P2B-LTB10-100	1,	LD-10
205	25 mm	034245	P2B-LTB7-25M	0,59	034253	P2B-LTB10-25M	0,59	LD-10
206	1-1/8	032945	P2B-LTB7-102	2,7	032975	P2B-LTB10-102	2,7	LD-20
206	1-3/16	032946	P2B-LTB7-103	2,6	032976	P2B-LTB10-103	2,6	LD-20
206	30 mm	034246	P2B-LTB7-30M	1,18	034254	P2B-LTB10-30M	1,18	LD-20
207	1-1/4	032947	P2B-LTB7-104	4	032977	P2B-LTB10-104	4	LD-20
207	1-3/8	032949	P2B-LTB7-106	3,8	032979	P2B-LTB10-106	3,8	LD-20
207	1-7/16	032950	P2B-LTB7-107	3,7	032980	P2B-LTB10-107	3,7	LD-20
207	1-1/2	032951	P2B-LTB7-108	3,6	032981	P2B-LTB10-108	3,6	LD-20
207	35 mm	034247	P2B-LTB7-35M	1,72	034255	P2B-LTB10-35M	1,72	LD-20
209	1-11/16	032953	P2B-LTB7-111	5	032983	P2B-LTB10-111	5	LD-20
209	1-3/4	032954	P2B-LTB7-112	4,8	032984	P2B-LTB10-112	4,8	LD-20
209	40 mm	034248	P2B-LTB7-40M	2,27	034256	P2B-LTB10-40M	2,27	LD-20
209	45 mm	034249	P2B-LTB7-45M	2,18	034257	P2B-LTB10-45M	2,18	LD-20
210	1-15/16	032955	P2B-LT87-115	6	032985	P2B-LTB10-115	6	LD-30
210	2	032956	P2B-LTB7-200	5,8	032986	P2B-LTB10-200	5	LD-30
210	50 mm	034250	P2B-LTB7-50M	2,72	034258	P2B-LTB10-50M	2,72	LD-30
211	2-3/16	032957	P2B-LTB7-203	6,5	032987	P2B-LTB10-203	6,5	LD-40
211	2-7/16	032959	P2B-LTB7-207	8,1	032989	P2B-LTB10-207	8,1	LD-40
212	2-1/2	032960	P2B-LTB7-208	7,8	032990	P2B-LTB10-208	7,8	LD-40
212	60 mm	034251	P2B-LTB7-60M	3,67	034259	P2B-LTB10-60M	3,67	LD-40
215	2-15/16	034596	P2B-LTB7-215	18,7	034598	P2B-LTB10-215	18,7	LD-45
215	3	034597	P2B-LTB7-300	18,4	034599	P2B-LTB10-300	18,4	LD-45
215	70 mm	—	—	—	—	—		LD-45
215	75 mm	—	—	—	—	—		LD-45

SoIidIube MM piIIow bIock – inch
2-bolt

Shaft size (inches)	700 Series		1000 Series		Weight (lbs)	Used on frame
	Part number	Description	Part number	Description
3-7/16	033247	P2B-MM7-307	033347	P2B-MM10-307	23.00	HD-250
3-1/2	033251	P2B-MM7-308	033351	P2B-MM10-308	22,80	HD-250
3-15/16	033475	P2B-MM7-315	033480	P2B-MM10-315	36,00	HD-300
4	033485	P2B-MM7-400	033490	P2B-MM10-400	35,80	HD-300
4-7/16	033500	P2B-MM7-407	033505	P2B-MM10-407	60,00	HD-350
4-1/2	033510	P2B-MM7-408	033515	P2B-MM10-408	59,70	HD-350
4-15/16	033525	P4B-MM7-415	033530	P4B-MM10-415	92,00	HD-400
5	033535	P4B-MM7-500	033540	P4B-MM10-500	91,50	HD-400

Sleeve Bearings – Solidlube
3/4″ THRU3″ Solidlube LT 4-Bolt Flange Bearing

Series	Shaft size	700 Series		1000 Series		Weight
		Part number	Description	Part number	Description
204	3/4	033260	F4B-LT7-012	033200	F4B-LT10-012	1,5 lbs
204	20mm	034273	F4B-LT7-20M	034283	F4B-LT10-20M	0,68 kgs
205	7/8	033261	F4B-LT7-014	033201	F4B-LT10-014	2,2 lbs
205	15/16	033262	F4B-LT7-015	033202	F4B-LT10-015	2,1 lbs
205	1	033263	F4B-LT7-100	033203	F4B-LT10-100	2 lbs
205	25mm	034274	F4B-LT7-25M	034284	F4B-LT10-25M	0,91 kgs
206	1-1/8	033264	F4B-LT7-102	033204	F4B-LT10-102	2,9 lbs
206	1-3/16	033265	F4B-LT7-103	033205	F4B-LT10-103	2,8 lbs
206	30mm	034275	F4B-LT7-30M	034285	F4B-LT10-30M	1,27 kgs
207	1-1/4	033266	F4B-LT7-104	033206	F4B-LT10-104	4,3 lbs
207	1-3/8	033267	F4B-LT7-106	033207	F4B-LT10-106	4 lbs
207	1-7/16	033268	F4B-LT7-107	033208	F4B-LT10-107	3,9 lbs
207	1-1/2	033269	F4B-LT7-108	033209	F4B-LT10-108	3,8 lbs
207	35mm	034276	F4B-LT7-35M	034286	F4B-LT10-35M	1,81 kgs
209	1-11/16	033270	F4B-07-111	033210	F4B-LT10-111	5,8 lbs
209	1-3/4	033271	F4B-07-112	033211	F4B-LT10-112	5,6 lbs
209	40mm	034277	F4B-LT7-40M	034287	F4B-LT10-40M	2,63 kgs
209	45mm	034278	F4B-LT7-45M	034288	F4B-LT10-45M	2,54 kgs
210	1-15/16	033272	F4B-07-115	033212	F4B-LT10-115	6,8 lbs
210	2	033273	F4B-LT7-200	033213	F4B-LT10-200	6,6 lbs
210	50mm	034279	F4B-LT7-50M	034289	F4B-LT10-50M	3 kgs
211	2-3/16	033274	F4B-LT7-203	033214	F4B-LT10-203	8,5 lbs
212	2-7/16	033275	F4B-L17-207	033215	F4B-LT10-207	11 lbs
212	2-1/2	033276	F4B-LT7-208	033216	F4B-LT10-208	10,8 lbs
212	60mm	034280	F4B-LT7-60M	034290	F4B-LT10-60M	5 kgs
215	2-15/16	033277	F4B-LT7-215	033217	F4B-LT10-215	18 lbs
215	3	033278	F4B-LT7-300	033218	F4B-LT10-300	17,7 lbs
215	70mm	034281	F4B-LT7-70M	034291	F4B-LT10-70M	8,16 kgs
215	75mm	034282	F4B-LT7-75M	034292	F4B-LT10-75M	8,03 kgs

SoIidIube MM fIange – inch
4-bolt

Shaft size (inches)	700 Series		1000 Series		Weight (lbs)
	Part number	Description	Part number	Description
3-7/16	033323	F4B-MM7-307	033868	F4B-MM10-307	17,00
3-1/2	033321	F4B-MM7-308	033931	F4B-MM10-308	18,00
3-15/16	032923	F4B-MM7-315	033899	F4B-MM10-315	26,00
4	032937	F4B-MM7-400	033932	F4B-MM10-400	26,00
4-7/16	033862	F4B-MM7-407	033933	F4B-MM10-407	42,00
4-1/2	033863	F4B-MM7-408	033934	F4B-MM10-408	42,00
4-15/16	033929	F4B-MM7-415	033869	F4B-MM10-415	62,00
5	033930	F4B-MM7-500	033867	F4B-MM10-500	62,00

SoIidIube LT fIange – inch
2-bolt

Series	Shaft size	700 Series		1000 Series		Weight
		Part number	Description	Part number	Description
204	3/4	033085	F2B-LT7-012	0331	F2B-LT10-012	1,2 lbs
204	20 mm	034260	F2B-LT7-20M	034266	F2B-LT10-20M	0,54 kgs
205	7/8	033086	F2B-LT7-014	033186	F2B-LT10-014	1,7 lbs
205	15/16	033087	F2B-LT7-015	033187	F2B-LT10-015	1,6 lbs
205	1	033088	F2B-LT7-100	033188	F2B-LT10-100	1,5 lbs
205	25 mm	0342	F2B-LT7-25M	034267	F2B-LT10-25M	0,68 kgs
206	1-1/8	0330	F2B-LT7-102	0331	F2B-LT10-102	2,2 lbs
206	1-3/16	033090	F2B-LT7-103	03319	F2B-LT10-103	2,1 lbs
206	30 mm	034262	F2B-LT7-30M	034268	F2B-LT10-30M	0,95 kgs
207	1-1/4	03309	F2B-LT7-104	03319	F2B-LT10-104	3,6 lbs
207	1-3/8	033092	F2B-LT7-106	033192	F2B-LT10-106	3,3 lbs
207	1-7/16	03309	F2B-LT7-107	033193	F2B-LT10-107	3,2 lbs
207	1-1/2	033094	F2B-LT7-108	033194	F2B-LTI0-108	3,1 lbs
207	35 mm	03426	F2B-LT7-35M	034269	F2B-LT10-35M	1,5 kgs
209	1-11/16	033095	F2B-LT7-111	03319	F2B-LT10-111	4,9 lbs
209	1-3/4	03309	F2B-LT7-112	033196	F2B-LT10-112	4,7 lbs
209	40 mm	034218	F2B-LT7-40M	034270	F2B-LT10-40M	2,22 kgs
209	45 mm	0342	F2B-LT7-45M	03427	F2B-LT10-45M	2,13 kgs
210	1-15/16	03309	F2B-LT7-115	033197	F2B-LT10-115	5,4 lbs
210	2	033098	F2B-LT7-200	033198	F2B-LT10-200	5,2 lbs
210	50 mm	034265	F2B-LT7-50M	034272	F2B-LT10-50M	2,36 kgs

SoIidIube LT take-up – inch
Narrow-slot (Ns)

Series	Shaft size	LT700		LT1000		Weight (lbs)	Used on frame
		Part number	Description	Part number	Description
204	3/4	033810	NSTU-LT7-012	033840	NSTU-LT10-012	1,7 lbs	NS-210
204	20 mm	034293	NSTU-LT7-20M	034303	NSTU-LT10-20M	0,77 kgs	NS-210
205	7/8	033811	NSTU-LT7-014	033841	NSTU-LT10-014	1,9 lbs	NS-210
205	15/16	033812	NSTU-LT7-015	033842	NSTU-LT10-015	1,8 lbs	NS-210
205	1	033813	NSTU-LT7-100	033843	NSTU-LT10-100	1,7 lbs	NS-210
205	25 mm	034294	NSTU-LT7-25M	034304	NSTU-LT10-25M	0,77 kgs	NS-210
206	1-1/8	033814	NSTU-LT7-102	033844	NSTU-LT10-102	2,8 lbs	NS-308
206	1-3/16	033815	NSTU-LT7-103	033845	NSTU-LT10-103	2,7 lbs	NS-308
206	30 mm	034295	NSTU-LT7-30M	034305	NSTU-LT10-30M	1,22 kgs	NS-308
207	1-1/4	033816	NSTU-LT7-104	033846	NSTU-LT10-104	3,2 lbs	NS-308
207	1-3/8	033817	NSTU-LT7-106	033847	NSTU-LT10-106	3 lbs	NS-308
207	1-7/16	033818	NSTU-LT7-107	033848	NSTU-LT10-107	2,9 lbs	NS-308
207	1-1/2	033819	NSTU-LT7-108	033849	NSTU-LT10-108	2,8 lbs	NS-308
207	35 mm	034296	NSTU-LT7-35M	034306	NSTU-LT10-35M	1,36 kgs	NS-308
209	1-11/16	033820	NSTU-LT7-111	033850	NSTU-LT10-111	4,9 lbs	NS-400
209	1-3/4	033821	NSTU-LT7-112	033851	NSTU-LT10-112	4,8 lbs	NS-400
209	40 mm	034297	NSTU-LT7-40M	034307	NSTU-LT10-40M	2,22 kgs	NS-400
209	45 mm	034298	NSTU-LT7-45M	034308	NSTU-LT10-45M	2,18 kgs	NS-400
210	1-15/16	033822	NSTU-LT7-115	033852	NSTU-LT10-115	5,5 lbs	NS-400
210	2	0338	NSTU-LT7-200	033853	NSTU-LT10-200	5,3 lbs	NS-400
210	50 mm	034299	NSTU-LT7-50M	034309	NSTU-LT10-50M	2,4 kgs	NS-400
211	2-3/16	033824	NSTU-LT7-203	033854	NSTU-LT10-203	6,7 lbs	NS-407
212	2-7/16	033825	NSTU-LT7-207	033855	NSTU-LT10-207	7,4 lbs	NS-415
212	2-1/2	033826	NSTU-LT7-208	033856	NSTU-LT10-208	7 lbs	NS-415
212	60 mm	034300	NSTU-LT7-60M	034310	NSTU-LT10-60M	3,18 kgs	NS-415

SoIidIube LT take-up – inch
Wide-slot (Ws)

Series	Shaft size	LT700		LT1000		Weight (lbs)	Used on frame
		Part number	Description	Part number	Description
204	3/4	033870	WSTU-LT7-012	033910	WSTU-LT10-012	2,4 lbs	WS-300
204	20 mm	034313	WSTU-LT7-20M	034323	WSTU-LT10-20M	1,09 kgs	WS-300
205	7/8	033871	WSTU-LT7-014	033911	WSTU-LT10-014	2,6 lbs	WS-300
205	15/16	033872	WSTU-LT7-015	033912	WSTU-LT10-015	2,5 lbs	WS-300
205	1	033873	WSTU-LT7-100	033913	WSTU-LT10-100	2,4 lbs	WS-300
205	25 mm	034314	WSTU-LT7-25M	034324	WSTU-LT10-25M	1,09 kgs	WS-300
206	1-1/8	033874	WSTU-LT7-102	033914	WSTU-LT10-102	3,2 lbs	WS-308
206	1-3/16	033875	WSTU-LT7-103	033915	WSTU-LT10-103	3,1 lbs	WS-308
206	30 mm	034315	WSTU-LT7-30M	034325	WSTU-LT10-30M	1,41 kgs	WS-308
207	1-1/4	033876	WSTU-LT7-104	033916	WSTU-LT10-104	4,2 lbs	WS-308
207	1-3/8	033877	WSTU-LT7-106	033917	WSTU-LT10-106	3,9 lbs	WS-308
207	1-7/16	033878	WSTU-LT7-107	033918	WSTU-LT10-107	3,8 lbs	WS-308
207	1-1/2	033879	WSTU-LT7-108	033919	WSTU-LT10-108	3,7 lbs	WS-308
207	35 mm	034316	WSTU-LT7-35M	034326	WSTU-LT10-35M	1,77 kgs	WS-308
209	1-11/16	033880	WSTU-LT7-111	033920	WSTU-LT10-111	6,1 lbs	WS-400
209	1-3/4	033881	WSTU-LT7-112	033921	WSTU-LT10-112	6 lbs	WS-400
209	40 mm	034317	WSTU-LT7-40M	034327	WSTU-LT10-40M	2,77 kgs	WS-400
209	45 mm	034318	WSTU-LT7-45M	034328	WSTU-LT10-45M	2,72 kgs	WS-400
210	1-15/16	033882	WSTU-LT7-115	033922	WSTU-LT10-115	6,7 lbs	WS-400
210	2	033883	WSTU-LT7-200	033923	WSTU-LT10-200	6,5 lbs	WS-400
210	50 mm	034319	WSTU-LT7-50M	034329	WSTU-LT10-50M	2,95 kgs	WS-400
211	2-3/16	033884	WSTU-LT7-203	033924	WSTU-LT10-203	9,8 lbs	WS-502
212	2-7/16	033885	WSTU-LT7-207	033925	WSTU-LT10-207	10,1 lbs	WS-502
212	2-1/2	033886	WSTU-LT7-208	033926	WSTU-LT10-208	9,8 lbs	WS-502
212	60 mm	034320	WSTU-LT7-60M	034330	WSTU-LT10-60M	4,58 kgs	WS-502
215	2-15/16	033887	WSTU-LT7-215	033927	WSTU-LT10-215	13 lbs	WS-515
215	3	033888	WSTU-LT7-300	033928	WSTU-LT10-300	12,5 lbs	WS-515
215	70 mm	034321	WSTU-LT7-70M	034331	WSTU-LT10-70M	5,9 kgs	WS-515
215	75 mm	034322	WSTU-LT7-75M	034332	WSTU-LT10-75M	5,67 kgs	WS-515

SoIidIube LT take-up – inch
Top-angle (TP)

Shaft size (inches)	700 Series		1000 Series		Weight (lbs)	Frame size
	Part number	Description	Part number	Description
1-15/16	033739	TP-GLT7-115	033750	TP-GLT10-115	10.1	TP10
2	033740	TP-GLT7-200	033751	TP-GLT10-200	10.1	TP10
2-3/16	033741	TP-GLT7-203	033752	TP-GLT10-203	11.8	TP20
2-7/16	033742	TP-GLT7-207	033753	TP-GLT10-207	14.1	TP30
2-1/2	033743	TP-GLT7-208	033754	TP-GLT10-208	14.1	TP30
2-15/16	033744	TP-GLT7-215	033755	TP-GLT10-215	17.0	TP40
3	033745	TP-GLT7-300	033756	TP-GLT10-300	17.0	TP40

SoIidIube LT bearing insert – inch

Series	Shaft size	LT700 Series		LT1000 Series		Weight
		Part number	Description	Part number	Description
204	3/4	033585	INS-LT7-012	033610	INS-LT10-012	0,3 lbs
204	20 mm	034454	INS-LT7-20M	034455	INS-LT10-20M	0,14 kgs
205	7/8	033586	INS-LT7-014	033611	INS-LT10-014	0,5 lbs
205	15/16	033587	INS-LT7-015	033612	INS-LT10-015	0,4 lbs
205	1	033588	INS-LT7-100	033613	INS-LT10-100	0,3 lbs
205	25 mm	034456	INS-LT7-25M	034457	INS-LT10-25M	0,14 kgs
206	1-1/8	033589	INS-LT7-102	033614	INS-LT10-102	0,7 lbs
206	1-3/16	033590	INS-LT7-103	033615	INS-LT10-103	0,6 lbs
206	30 mm	034458	INS-LT7-30M	034459	INS-LT10-30M	0,32 kgs
207	1-1/4	033591	INS-LT7-104	033616	INS-LT10-104	1,2 lbs
207	1-3/8	033592	INS-LT7-106	033617	INS-LT10-106	1 lbs
207	1-7/16	033593	INS-LT7-107	033618	INS-LT10-107	0,9 lbs
207	1-1/2	033594	INS-LT7-108	033619	INS-LT10-108	0,8 lbs
207	35 mm	034460	INS-LT7-35M	034461	INS-LT10-35M	0,45 kgs
209	1-11/16	033595	INS-LT7-111	033620	INS-LT10-111	1,6 lbs
209	1-3/4	033596	INS-LT7-112	033621	INS-LT10-112	1,4 lbs
209	40 mm	034462	INS-LT7-40M	034463	INS-LT10-40M	0,73 kgs
209	45 mm	034464	INS-LT7-45M	034465	INS-LT10-45M	0,64 kgs
210	1-15/16	033597	INS-LT7-115	033622	INS-LT10-115	1,8 lbs
210	2	033598	INS-LT7-200	033623	INS-LT10-200	1,6 lbs
210	50 mm	034466	INS-LT7-50M	034467	INS-LT10-50M	0,73 kgs
211	2-3/16	033599	INS-LT7-203	033624	INS-LT10-203	2,3 lbs
212	2-7/16	033600	INS-LT7-207	033625	INS-LT10-207	3,2 lbs
212	2-1/2	033601	INS-LT7-208	033626	INS-LT10-208	3 lbs
212	60 mm	034468	INS-LT7-60M	034469	INS-LT10-60M	1,45 kgs
215	2-15/16	033602	INS-LT7-215	033627	INS-LT10-215	5,8 lbs
215	3	034117	INS-LT7-300	034525	INS-LT10-300	5,5 lbs
215	70 mm	034470	INS-LT7-70M	034471	INS-LT10-70M	2,5 kgs
215	75 mm	034472	INS-LT7-75M	034473	INS-LT10-75M	2,5 kgs

SoIidIube MM bearing insert – inch

Shaft size (inches)	LT700 Series		LT1000 Series		Weight (lbs)
	Part number	Description	Part number	Description
3-7/16	034438	INS-MM7-307	034439	INS-MM10-307	6.4
3-1/2	034440	INS-MM7-308	034441	INS-MM10-308	6,2
3-15/16	034442	INS-MM7-315	034443	INS-MM10-315	10,0
4	034444	INS-MM7-400	034445	INS-MM10-400	9,8
4-7/16	034446	INS-MM7-407	034447	INS-MM10-407	20,0
4-1/2	034448	INS-MM7-408	034449	INS-MM10-408	19,7
4-15/16	034450	INS-MM7-415	034451	INS-MM10-415	27,0
5	034452	INS-MM7-500	034453	INS-MM10-500	26,5

SoIidIube LT cyIindricaI units – inch

Shaft size (inches)	LT700		LT1000		Weight (lbs)
	Part number	Description	Part number	Description
7/8	033961	CYL-LT7-014	422596	CYL-LT10-014	1,5
15/16	033960	CYL-LT7-015	422595	CYL-LT10-015	1,5
1	033962	CYL-LT7-100	422597	CYL-LT10-100	1,5
1-1/8	033963	CYL-LT7-102	492598	CYL-LT10-102	2,9
1-3/16	033964	CYL-LT7-103	422599	CYL-LT10-103	2,9
1-1/4	033965	CYL-LT7-104	422600	CYL-LT10-104	3,0
1-3/8	033966	CYL-LT7-106	422601	CYL-LT10-106	3,0
1-7/16	033967	CYL-LT7-107	422602	CYL-LT10-107	3,0
1-1/2	033968	CYL-LT7-108	422603	CYL-LT10-108	3,0

CÔNG TY TNHH THƯƠNG MẠI DỊCH VỤ SONG NHẬT

Mounted Hydrodynamic Bearings Dodge (Sleevoil)
